Scope 500 Fireplace Grate

Starts at $3,295.00

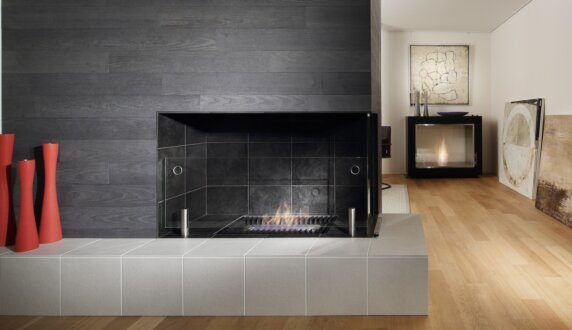

Designed to complement traditional
hearths and custom spaces

Designed to complement traditional hearths and custom spaces, EcoSmart’s Scope 500 makes it easy to reinvigorate an old, disused, wood-burning fireplace. Equally at home in both residential and commercial settings, the grooved grate design accommodates the XL500 Burner so its fits snugly in wide hearths.

EcoSmart’s Fireplace Grates enable architects, interior designers and homeowners to create a unique fireplace feature without the costs associated with installing a chimney, flue, or gas connection.

Configure & Buy

Buy online and get it delivered to your door.

Select Fuel Type

Ethanol Ethanol Burner Backorder: 8-10 wks
Ethanol  - Studio Image by EcoSmart Fire

Select Model Finish

Black Backorder: 8-10 wks
Black  - Studio Image by EcoSmart Fire

Select Burner Colour

Stainless Steel Backorder: 8-10 wks
Stainless Steel  - Studio Image by EcoSmart Fire

Add Accessories

Plasma Fire Screen Fireplace Screen - Studio Image by EcoSmart Fire
Plasma Fire Screen Backorder: 8-10 wks
  • Included Accessories:
  • Fire Lighter
  • Lighting Rod
  • Jerry Can 5L
  • Bottle Adaptor

Add e-NRG Bioethanol

How much fuel do I need?
e-NRG Bioethanol Fuel Bioethanol Fuel - Studio Image by EcoSmart Fire
e-NRG Bioethanol In Stock: Ready to ship From $220.00
  • 40L 2 cartons +$220.00
  • 60L 3 cartons +$330.00
  • 80L 4 cartons +$440.00
  • 100L 5 cartons +$550.00
  • 120L 6 cartons +$660.00
  • 140L 7 cartons +$770.00
* Get an exclusive quote of the final
cost delivered to your place.
* Prices include GST. Tax Information * Standard Shipping provides ground delivery to the curb. Shipping Information * All times, dates, and inventory levels are subject to change at anytime.

Inspiration

Key Features

Easy Installation

Simply place your fireplace grate on a level non-combustible platform within an existing (or newly constructed) fireplace cavity and then fill with liquid e-NRG bio-ethanol.

Maximise Heat Output

Increase efficiency of the grate by closing the dampener or blocking off the chimney with a metal plate.

Eco-Friendly Fuel Source

The Scope 500 is fuelled by liquid bioethanol, an environmentally friendly, readily available, renewable fuel source.

Renovator’s Dream

No longer the exclusive domain of expert interior designers, converting an old fireplace couldn't be easier with EcoSmart Fires.

Rust-treated Steel

The Scope 500 is constructed from durable, rust-treated steel and finished in a chic black Teflon coating.

Included Accessories

Operational accessories designed for safe and ergonomic fire ignition and extinguishing are included.

Tested world-wide

Our collection has been thoroughly tested against a number of global standards and is O-TL Listed in accordance with UL 1370 in the USA, certified in accordance with EN16647 in Europe and the UK, and satisfies the ACCC Safety Mandate for Australia.

Technical Specifications

Construction

  • Weight 24.10kg [53.13lb]
  • Model Dimensions mm [in] L 644mm [25.4in] W 320mm [12.6in] H 150mm [5.9in]
  • Application Indoor
  • Materials Mild Steel
  • Colours Grates come with Stainless Steel burners.
This model is manufacturer approved for use with the UL Listed XL500 Burner.

Accessories

Includes everything you need to easily operate and protect your investment for many years to come.

Fuel Efficiency

Volume Capacity
5 L
1.3 Gal
Heats on Average
40m2
431ft2
Minimal Room
80m3
2825ft3
Thermal Output
11430 BTU/h
3.4 kW 12 MJ/h
Burn Time
10 - 13 h
5 Litres
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

FAQ's

View All

Is Bioethanol easily obtainable?

Yes, you can have fuel delivered to public and private premises in many countries.

Are ethanol fireplaces good for the environment?

EcoSmart Fire’s ethanol fireplace burners and fireplace inserts, when paired with our e-NRG bioethanol fuel are clean burning with the only byproduct being heat, steam and carbon dioxide (the same stuff we exhale). Unlike gas fireplace inserts and wood burning fireplace inserts, EcoSmart Fire’s ethanol fireplaces do not produce messy pollutants like soot, smoke, and ash.

Is their heat output similar to a gas heater?

Burning bioethanol is similar to gas, but the room doesn't dry out like it does with gas - a more gentle, softer heat is created. Heat-wise, it depends on the models being compared. Some of our bioethanol burners output 15,000 BTU and can heat up to 60sqm of living space. Bioethanol is not, however, on an adjustable thermostat. Some may be turned up and down, but you can't control the room temperature in the same way as you do with gas on mains

How do I fill my ethanol fireplace?

With EcoSmart Fire’s proprietary tools and procedures, filling your ethanol fireplace with e-NRG bioethanol fuel is fast and easy.

Step 1: Remove the bottle nozzle cap and carefully insert into the filling point

Step 2: Push and hold the green button. The nozzle will automatically stop filling once the reservoir is full.

Step 3: Replace the nozzle cap.

You can view a step-by-step filling video.

Do ethanol fireplaces give off heat?

EcoSmart Fire’s indoor ethanol fireplaces are ventless, meaning all the heat stays in the room rather than escaping up a flue or chimney like it would with a traditional wood burning fireplace. Increased heat retention also means increased fuel efficiency. EcoSmart Fire’s collection of ethanol fireplaces offer a heat output ranging from 5,000 BTU - 20,000 BTU’s.

Where do I buy ethanol fuel for my ethanol fireplace?

e-NRG is the only bioethanol fuel recommended for your ethanol fireplace. e-NRG has been produced for the lowest odor, most vibrant flame, and longest burn time on the market. e-NRG has undergone rigorous third party testing with all EcoSmart Fire ethanol fireplaces. Use of any other fuel may damage your unit and void your warranty. You can purchase e-NRG ethanol fuel at e-nrg.com for fast and free shipping.

Why use an ethanol fireplace?

An ethanol fireplace is an eco-friendly and cost-effective alternative to gas fireplaces and wood burning fireplaces. Enjoy the warmth and aesthetic benefits of a traditional fireplace without the smoke, soot or ash in your home. Unlike gas fireplaces or traditional wood burning fireplaces, EcoSmart Fire’s ethanol fireplace inserts require no venting, no gas line, no electricity - eliminating the need and cost of three sub contractors.

How safe are bioethanol fireplaces?

EcoSmart Fire’s operating tools, procedures, and proprietary technologies were developed with safety as our top priority. Made from 304-grade stainless steel, EcoSmart Fire’s ethanol fireplace burners go through a deep-draw fabrication process that eliminates the potential for dangerous leaks. Additionally, our patented filling point is separated from the ignition zone and engineered so that the jerry can spout is fully supported prior to releasing the fuel supply. This eliminates the usual splash and spills that would otherwise occur when fuel is decanted into the burner while simultaneously reinforcing the maximum fill line within the burner. EcoSmart Fire’s ethanol fireplaces release heat, carbon dioxide (the same stuff we exhale) and steam. Allowing you to enjoy a clean-burning flame without the soot, smoke, ash or other harmful substances emitted by traditional wood burning fireplaces. When selecting an installation location for your ethanol fireplace it is important to consider the required minimum room sizes and clearances. Please reference our installation manual for more information.
