Provides a Focal Point for two rooms for
a single installation cost
Model: Double Sided Fireplace © Digital Render

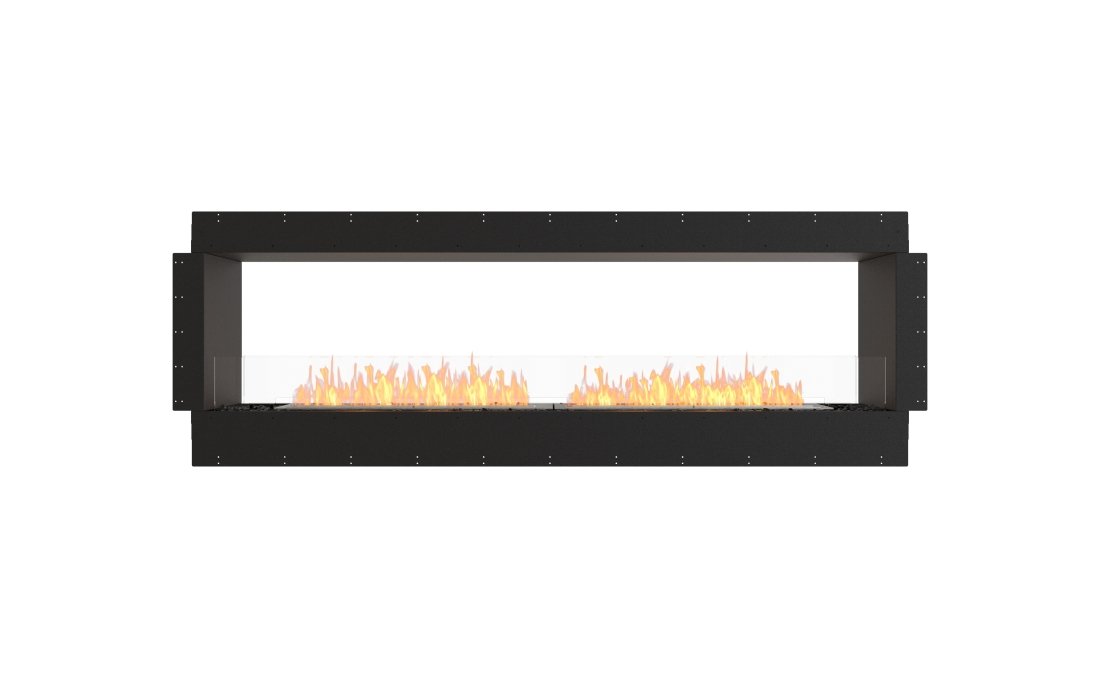

Double Sided Fireplaces

Providing unobstructed views of EcoSmart’s flickering flame from both sides, Flex DB Firebox’s see-through design injects warmth and ambiance in two adjacent rooms.

Configurations

Flex Series

Flame Only

The left and right panels are steel. The back panel is glass. The front and back feature a fire screen that sits flush with the face of the fireplace

Flex Series

Decorative Box Rigth

When a decorative box is added to the left, the panel between the standard fire and the decorative box is glass and the external panel is steel.

Flex Series

Decorative Box Left

When a decorative box is added to the right, the panel between the standard fire and the decorative box is glass and the external panel is steel.

Flex Series

2 Decorative Boxes

When adding a decorative box to both sides of the standard double sided configuration, both internal panels are glass and both external panel are steel.

Double Sided Fireplace Models

All Models
Compare Specs
Model Name
Model SKU
Included Burners
Average Heats
Minimum Room
Width
Depth
Height
Actions
Burner AB3
Heats 20m2
Room 40m3
Width 578mm
Depth 354mm
Height 807mm
Flex 32DB Double Sided by EcoSmart Fire
Flex 32DB XL500
Burner XL500
Heats 40m2
Room 80m3
Width 1010mm
Depth 354mm
Height 807mm
Flex 42DB Double Sided by EcoSmart Fire
Flex 42DB XL700
Burner XL700
Heats 50m2
Room 90m3
Width 1265mm
Depth 354mm
Height 807mm
Flex 50DB Double Sided by EcoSmart Fire
Flex 50DB.BX1 Double Sided by EcoSmart Fire
Flex 50DB XL Series
Flex 50DB.BX1 XL Series
Burner XL900 XL500
Heats 60m2 40m2
Room 80m3
Width 1470mm 1470mm
Depth 354mm 354mm
Height 807mm 807mm
Burner XL700
Heats 50m2
Room 90m3
Width 1725mm
Depth 354mm
Height 807mm
Flex 68DB Double Sided by EcoSmart Fire
Flex 68DB.BX1 Double Sided by EcoSmart Fire
Flex 68DB.BX2 Double Sided by EcoSmart Fire
Flex 68DB XL Series
Flex 68DB.BX1 XL Series
Flex 68DB.BX2 XL Series
Burner XL1200 XL900 XL500
Heats 65m2 60m2 40m2
Room 80m3
Width 1930mm 1725mm 1931mm
Depth 354mm 354mm 354mm
Height 807mm 807mm 807mm
Burner XL700
Heats 50m2
Room 90m3
Width 2186mm
Depth 354mm
Height 807mm
Flex 86DB Double Sided by EcoSmart Fire
Flex 86DB.BX1 Double Sided by EcoSmart Fire
Flex 86DB.BX2 Double Sided by EcoSmart Fire
Flex 86DB XL Series
Flex 86DB.BX1 XL Series
Flex 86DB.BX2 XL Series
Burner XL900 [x2] XL1200 XL900
Heats 120m2 65m2 60m2
Room 110m3
Width 2390mm 2390mm 2391mm
Depth 354mm 354mm 354mm
Height 807mm 807mm 807mm
Flex 104DB Double Sided by EcoSmart Fire
Flex 104DB.BX1 Double Sided by EcoSmart Fire
Flex 104DB.BX2 Double Sided by EcoSmart Fire
Flex 104DB XL Series
Flex 104DB.BX1 XL Series
Flex 104DB.BX2 XL Series
Burner XL1200 [x2] XL900 [x2] XL1200
Heats 130m2 120m2 65m2
Room 115m3
Width 2850mm 2850mm 2851mm
Depth 354mm 354mm 354mm
Height 807mm 807mm 807mm
Flex 122DB Double Sided by EcoSmart Fire
Flex 122DB.BX1 Double Sided by EcoSmart Fire
Flex 122DB.BX2 Double Sided by EcoSmart Fire
Flex 122DB XL Series
Flex 122DB.BX1 XL Series
Flex 122DB.BX2 XL Series
Burner XL900 [x3] XL1200 [x2] XL900 [x2]
Heats 180m2 130m2 120m2
Room 220m3
Width 3310mm 3310mm 3311mm
Depth 354mm 354mm 354mm
Height 807mm 807mm 807mm
Flex 140DB.BX1 Double Sided by EcoSmart Fire
Flex 140DB.BX2 Double Sided by EcoSmart Fire
Flex 140DB.BX1 XL Series
Flex 140DB.BX2 XL Series
Burner XL900 [x3] XL1200 [x2]
Heats 180m2 130m2
Room 230m3
Width 3770mm 3771mm
Depth 354mm 354mm
Height 807mm 807mm
Flex 158DB Double Sided by EcoSmart Fire
Flex 158DB.BX2 Double Sided by EcoSmart Fire
Flex 158DB XL Series
Flex 158DB.BX2 XL Series
Burner XL1200 [x3] XL900 [x3]
Heats 195m2 180m2
Room 330m3
Width 4230mm 4231mm
Depth 354mm 354mm
Height 807mm 807mm
* Flex Series models are manufacturer approved surrounds for the UL Listed XL900 & XL700 burners.
