Whether you’re fitting a square, linear or round glass fire screen, this guide walks you through every step of the assembly process. You’ll find a complete parts list for each model, safety notes for handling toughened glass, and clear instructions for bracket and leg placement. It’s designed so homeowners, installers and builders can get the job done confidently and safely.

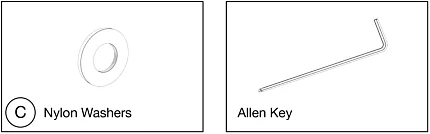

Included Common Items
Included with Square & Linear Glass Fire Screens
Included with Round Glass Fire Screen
| Included items | S18 | S22 | L50 | L65 | L90 | L130 | R20 | |
| A(a) | Square Screen | x 4 | x 4 | - | - | - | - | - |
| A(b) | Linear Short Screen | - | - | x 2 | x 2 | x 2 | x 2 | - |
| A(c) | Linear Long Screen | - | - | x 2 | x 2 | x 4 | x 6 | - |
| A(d) | Curved Screen | - | - | - | - | - | - | x 3 |
| B | Screws | x 16 | x 16 | x 16 | x 16 | x 24 | x 32 | x 12 |
| C | Washers | x 32 | x 32 | x 32 | x 32 | x 48 | x 64 | x 24 |

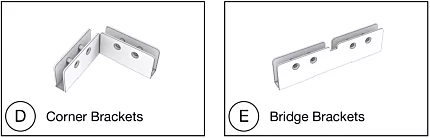

| D | Corner Brackets | x 4 | x 4 | x 4 | x 4 | x 4 | x 4 | - |
| E | Bridge Brackets | - | - | - | - | x 2 | x 4 | - |

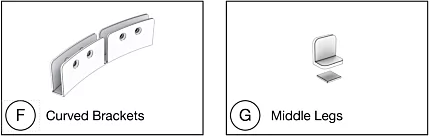

| F | Curved Brackets | - | - | - | - | - | - | x 3 |
| G | Middle Legs | - | - | - | - | - | - | x 3 |
WARNING The glass used is low iron toughened (tempered) glass - which means it is stronger than normal glass. Importantly, even though it is stronger, toughened (tempered) glass still has weaknesses. The corners and sides are specific pressure points where it is more fragile and can break if care is not taken. Extreme temperature variations could cause the glass to shatter.
CAUTION Glass will get HOT when fire is in operation. Keep children away. Never leave children unsupervised around a fire.
Assembly Instructions

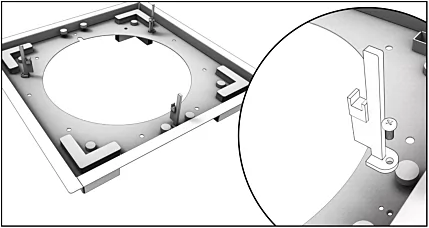

Align all components as shown in the images below and assemble together using the supplied Allen Key. Repeat the process until all the glass pieces are connected.

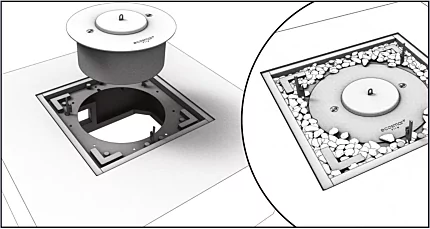

Refer to the Clearances and Installation manual provided with your appliance for instructions on installing the assembled glass fire screens onto your appliance.
- Square Screens S18, S22

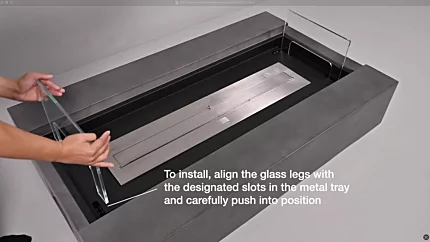

- Linear Screens L50, L65, L90, L130

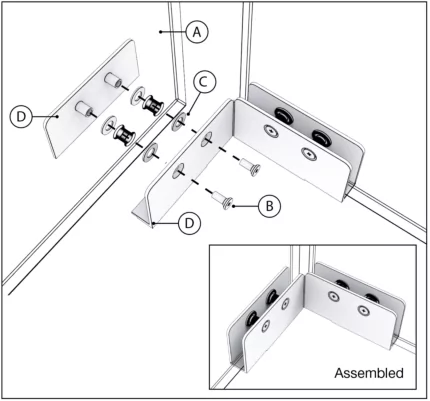

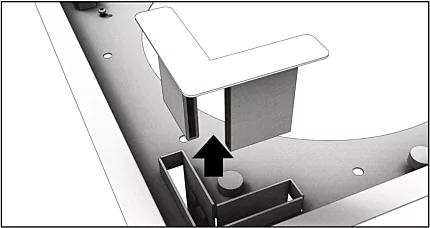

Corner Bracket Assembly
Linear Screens L90, L130

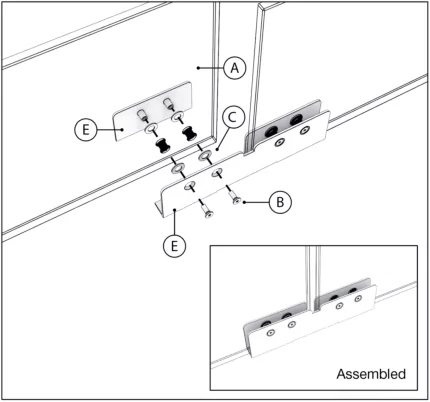

Bridge Bracket Assembly

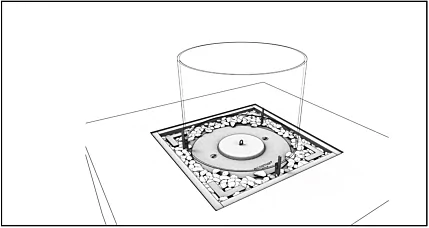

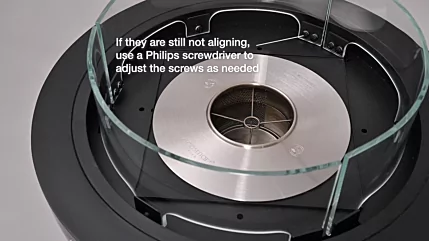

Round Screen R20

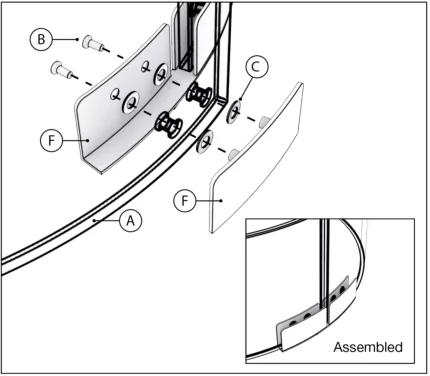

Curved Bracket Assembly

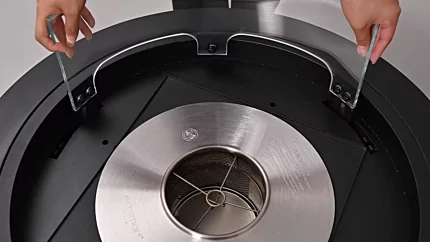

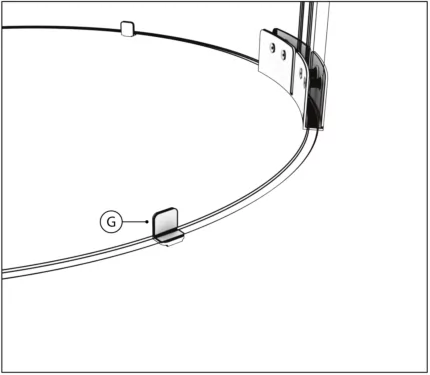

Place the Middle Legs as a support in the center of each individual round glass pane. Attach the plastic pad to level the leg incase surfaces are uneven.
Applies To:
- L50, L65, L90, L130, R20, S22, S18
