Do not operate the appliance until it has been securely fastened using the included ground fixing brackets.

Equipment required: ​Short Philips head screw driver

Position the fireplace in accordance to the compulsory minimum clearances outlined on the Fireplace Clearances page.

This model comes with Ground Fixing Brackets so it can be installed in a fixed position.

Installation

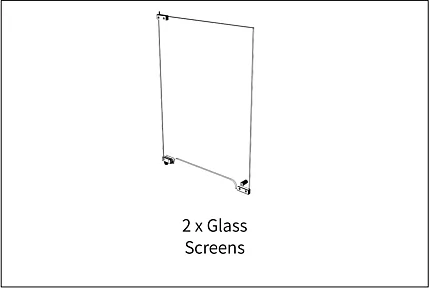

1. Confirm you have received all necessary parts as illustrated.

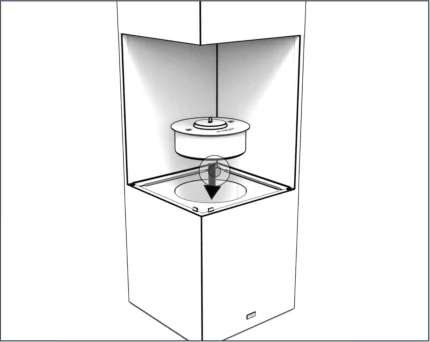

2. Insert burner into the model.

3. Glass Screen Installation:

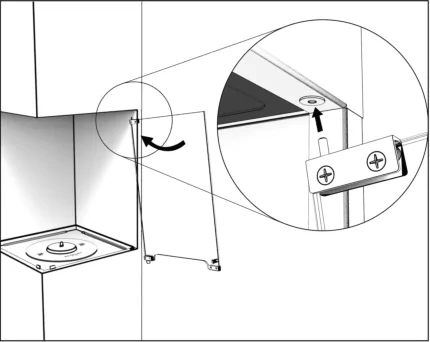

a. Align top front glass pin with the top grommet hole position.

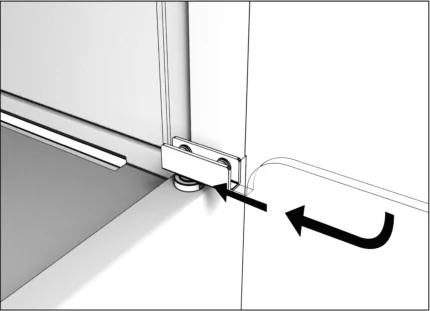

b. Swing the bottom pin towards base, align and push into the open slot of the bottom grommet position.

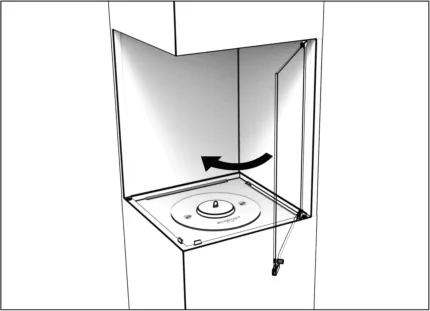

c. Test and close the front screen pivot/hinge system.

Repeat for remaining glass panel.

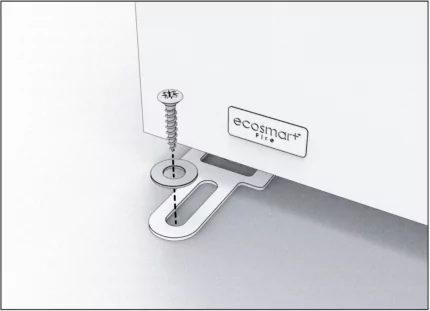

4. Follow the instructions supplied with the Ground Fixing Brackets to complete the installation of the product.

Warning: Do not cover or place anything over/on the product.

Operate according to the Burner Operations Manual included with the burner.

Applies to:

• Designer Fireplace (Be)
