Orbit Designer Fireplace

Ultramodern elevated ethanol fireplace with surround view

Orbit

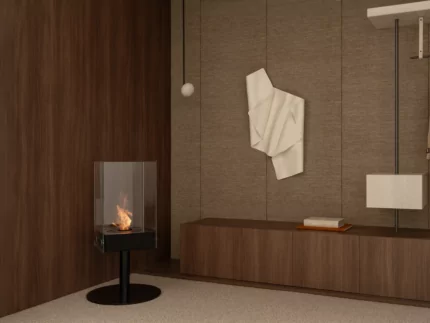

A futuristic, raised indoor fireplace delivering an ‘orbital’ 360-degree flame to create visual interest and beautifully define a room. Glass surrounds ensure a stunning focal point seen from many angles. Made from long-lasting, low-impact materials and fuelled by renewable fuel, Orbit is a sustainable fire that quickly captures attention and makes a bold décor statement.

Shop Now

Accessories

Included

Jerry Can Spout Extension

The Jerry Can Spout Extension makes refuelling your EcoSmart Fire easier than ever.

Jerry Can 5L

The Jerry Can allows for the safe storing/decanting of e-NRG ethanol.

Fire Lighter

This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.

Lighting Rod

The Lighting Rod enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.

Bottle Adaptor

The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.

Optional

D60 Fire Screen

The D60 Fire Screen attaches seamlessly to the front face of the Ghost and Orbit designer fireplaces.

Specifications

Application

Indoor

Dimensions

W 550 mm [21.7 in]
H 986 mm [38.8 in]
D 550 mm [21.7 in]

Weight

54.44 kg [120 lb]

Materials

Black Powder-coated Stainless Steel Model; Toughened Glass Fire Screen; Grade 304 Stainless Steel (Black Ceramic-Coating) Burner

Colour

Model

Black

Burner

Black

Efficiency

Burner Information
Volume Capacity How much fuel	2.5 L 0.7 gal
Thermal Output How much heat it creates	5,800 BTU/h 6.12 MJ/h - 2 kW
Burn Time How long it lasts	8-11 h 3 L [0.7 gal]
Fuel Consumption How much fuel it consumes on MAX	0.31 L/h 0.08 gal/h
Heats on Average How much space it heats	20 m² 215 ft²
Minimum Room Size Required for this burner	40 m³ 1,413 ft³

These values are indicative ONLY and may vary depending on the model purchased,installation, and the fuel composition.
This model complies with existing standards in the USA, Europe, UK and Australia. O-TL listed to UL 1370, EN 16647 BSI Certified and ACCC Safety Mandate compliant for bioethanol burners.

Downloads

Model Specifications

PDF

Clearances & Installation Manual

PDF

Installation & Operation Manual - Ethanol Burners

PDF

Videos

How to operate your AB Series ethanol burner

The product shown in this video is for demonstration purposes only and may not represent the exact model you are viewing.

Sleek aesthetics

Slimline and raised, with glass-surrounded burner for maximum flame enjoyment from different parts of your indoor space. Bringing a warm aesthetic to your architectural space.

Long-lasting flame

Featuring an AB3 Ethanol Burner giving up to 11 hours of burn time, perfect for entertaining or for relaxing at home.

thumbnail: esf-orbit-indoor-designer-fireplace-private-residence-2.jpg

Environmentally friendly

Fuelled by renewable energy e-NRG bioethanol, a clean-burning, mess-free fuel source.

Durable

Crafted from robust, black powder-coated stainless steel stand and tall, toughened glass surrounds.

Keynote flexibility

Rotating, portable fireplace design for easy placement in corners, taking centre stage at the heart of a room, or alongside furniture.

thumbnail: esf-orbit-b-designer-fireplace-private-residence.jpg

Tested worldwide

All burners (excluding VB2) are OMNI-Test Laboratories Inc. listed in accordance with UL 1370-16 “Standard for Unvented Alcohol Fuel Burning Decorative Appliances” in the USA, are certified by BSI in accordance with EN16647 (excluding VB2), and comply with the ACCC Safety Mandate for Australia.
