This guide walks you through the installation of your EcoSmart Fire Orbit fireplace. Follow each step carefully to ensure safe and correct setup.

Do not operate the appliance until it has been securely fastened using the included ground fixing brackets.

Equipment required:

Timber/Wood: pencil, short philips head screw driver, drill and pilot drill bit.

Concrete/Stone: pencil, short philips head screw driver, hammer, masonry drill and masonry bit.

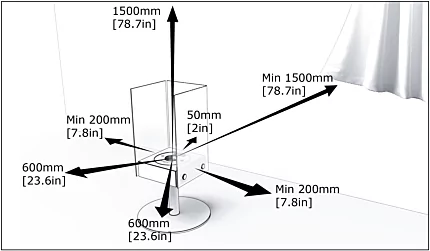

Position the fireplace in accordance to the compulsory minimum clearances outlined on the Fireplace Clearances page (indoor only).

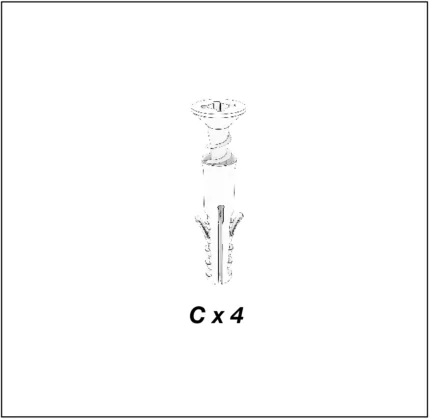

1. Confirm you have received all necessary parts as illustrated.

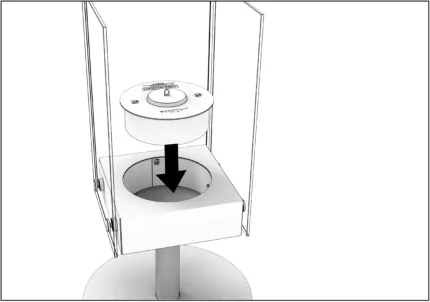

2. Insert burner into the model.

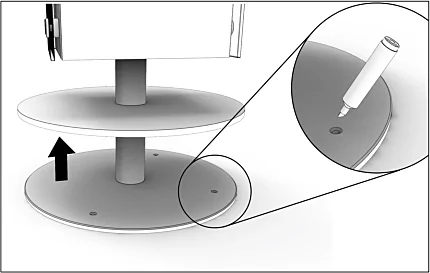

3. Lift the base cover plate and mark the ground fixing positions.

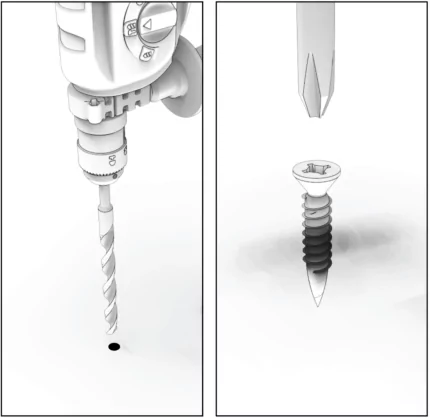

4a. Move fireplace and pilot drill four (4) holes for wood screws provided;

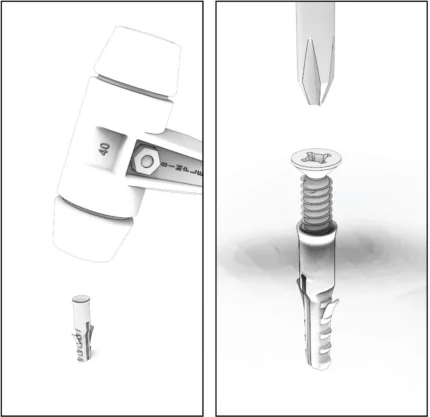

4b. Move fireplace and pilot drill four (4) holes for masonry anchors provided;

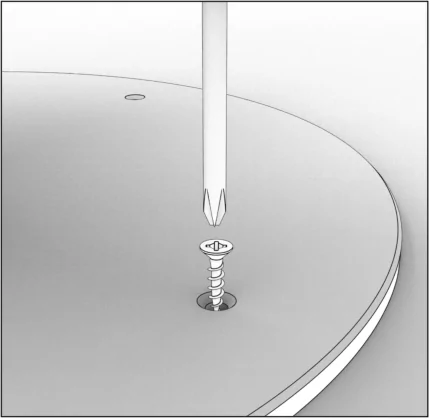

5. Align unit holes to drilled positions. Secure the base with screws until screw head is flush with base plate.

Place the cover plate back.

Operate according to the Burner Operations Manual included with the burner.

Applies To:

• Orbit
