Ark 40 Fire Pit Table

A curvaceous fire pit table that brings friendship and fire together

Ark 40

Natural hues, weatherproof materials and industrial design features combine to create a striking fire solution. With a wide lip to perch a drink on, and an unobtrusive shape that suits all types of décors and settings, EcoSmart’s Ark 40 fire furniture creates an instant talking point – even when it is not in use.

Shop Now

Accessories

Included

AB8 Efficiency Ring

AB8 Efficient Rings are used to regulate and further stabilise the flame increasing fuel efficiency of the burner.

Jerry Can 5L

The Jerry Can allows for the safe storing/decanting of e-NRG ethanol.

Fire Lighter

This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.

Lighting Rod

The Lighting Rod enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.

Bottle Adaptor

The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.

Black Glass Charcoal

The Black Glass Charcoal is made from high-quality tempered glass and has been designed to withstand harsh weather and temperatures of up to 1300ºF/700ºC.

Optional

R530 Fire Screen

Screens help to minimise the impact of wind on the flame and reduce fuel consumption.

R400 Fire Screen

Screens help to minimise the impact of wind on the flame and reduce fuel consumption.

R20 Cover Plate

Transform the burner section of your Ecosmart fire pit table, easily turning it into a flat, usable coffee table surface.

Ark 40 Winter Bag

These Outdoor Fire Covers help to protect your investment. Made from UV coated Oxford fabric they repel dust, water and other debris for easy maintenance.

RT40 All-Season Cover

These Outdoor Fire Covers help to protect your investment. Made from UV coated Oxford fabric they repel dust, water and other debris for easy maintenance.

Ark 40 Protective Cover

These Outdoor Fire Covers help to protect your investment. Made from UV coated Oxford fabric they repel dust, water and other debris for easy maintenance.

AB8 Silicone Burner Cover

Silicone Burner Covers protect ethanol burners from the elements when the EcoSmart model isn’t in use.

Specifications

Application

Indoor or Outdoor

Dimensions

L 1,000 mm [39.4 in]
W 1,000 mm [39.4 in]
H 339 mm [13.3 in]

Weight

Concrete 58.26 kg [128.4 lb]
Teak 56.03 kg [123.5 lb]

Materials

Fluid™ Concrete or Teak Wood Surround; Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner

Colour

Surround

Natural

Graphite

Bone

Natural Teak

Burner

Stainless Steel

Black

Bioethanol is suited for both Indoor/Outdoor use; however, additional parts are REQUIRED for indoor use.
The weight includes the burner and black glass charcoal.

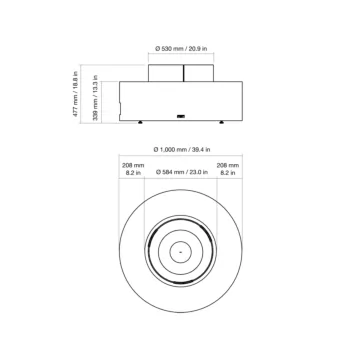

Line drawings show model with the Fire Screen installed.

Efficiency

Burner Information
Burner Configuration Compatible with this model	AB8
Volume Capacity How much fuel	8 L 2.1 gal
Thermal Output How much heat it creates	20,433 BTU/h 21.56 MJ/h - 6 kW
Burn Time How long it lasts	7-9 h 8 L [2.1 gal]
Fuel Consumption How much fuel it consumes on MAX	1.1 L/h 0.29 gal/h
Heats on Average How much space it heats	60 m² 646 ft²
Minimum Room Size Required for this burner	116 m³ 4,097 ft³

These values are indicative ONLY and may vary depending on the model purchased,installation, and the fuel composition.
This model complies with existing standards in the USA, Europe, UK and Australia. O-TL listed to UL 1370, EN 16647 BSI Certified and ACCC Safety Mandate compliant for bioethanol burners.
To comply with EN 16647 the Indoor Safety Tray & included AB8 Burner Efficiency Ring must be installed before operating indoors.

Downloads

Model Specifications

PDF

Clearances & Installation Manual

PDF

Installation & Operation Manual - Ethanol Burners

PDF

Videos

How to assemble and operate your AB Series ethanol burner

The product shown in this video is for demonstration purposes only and may not represent the exact model you are viewing.

How to assemble your glass cover plate

The product shown in this video is for demonstration purposes only and may not represent the exact model you are viewing.

How to install the Glass Fire Screen

thumbnail: esf-ark-40-fire-table-commercial-space.jpg

All-weather materials

Our finishes are extremely durable and weatherproof. We use a blend of green cement, recycled materials, and Fluid™ Concrete Technology in our lightweight concrete finish which resists scratches, stains, mould, and mildew. Our wood tables are made from Grade A teak, a naturally durable wood that withstands extreme weather without losing its strength or beauty.

thumbnail: esf-ark-40-fire-table-stone-lotus-landscapes.jpg

Long burn time

Fuelled by environmentally friendly e-NRG bioethanol, Ark 40 can burn up to 11 hours straight, depending on installation and weather conditions.

Move it outside

Simply relocate your ethanol fire pit to the outside during parties or festivities.

thumbnail: esf-ark-40-fire-table-starfire.jpeg

Generous table space

The table's large surface area is perfect for setting down wine glasses and appetisers, making it ideal for hosting a party or gathering.

Smokeless flame

Relish in the warmth of a fire that creates an ambience without the smoke, soot, or mess associated with wood.

Organic colours

Choose from a natural, blonde teak wood or the sleek, industrial-style concrete colours of natural, graphite or bone.

Articulating feet

Featuring 360º height-adjustable articulating feet to help you achieve a perfectly level and stable position on your flooring.

thumbnail: esf-ark-40-teak-outdoor-elegance-5912-with-screen.jpg

Tested world wide

This model complies with existing standards in the USA, Europe, UK and Australia. O-TL listed to UL 1370, EN 16647 BSI Certified and ACCC Safety Mandate compliant.
