Gin 90 Low Fire Pit Table

Multi-functional
coffee table that
encourages
conversation

Gin 90 Low

A low-set fire pit table that’s been created to be a multi-functional piece of furniture for indoors or outside. The Gin 90 Low table is a sleek, unobtrusive fire pit that can define and enhance a space. Enjoy the warmth of an open fire without embers, ash and soot creating a mess and smoke compromising the ambience.

Shop Now

Accessories

Included

XL Baffles

XL Baffles are used to regulate and further stabilise the flame increasing fuel efficiency of the burner.

Jerry Can 5L

The Jerry Can allows for the safe storing/decanting of e-NRG ethanol.

Fire Lighter

This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.

Lighting Rod

The Lighting Rod enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.

Bottle Adaptor

The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.

Black Glass Charcoal

The Black Glass Charcoal is made from high-quality tempered glass and has been designed to withstand harsh weather and temperatures of up to 1300ºF/700ºC.

Optional

L1520 Fire Screen

Screens help to minimise the impact of wind on the flame and reduce fuel consumption.

L65 Cover Plate

Transform the burner section of your Ecosmart fire table, easily turning it into a flat, usable coffee table surface.

Gin 90 (Low) Winter Bag

These Outdoor Fire Covers help to protect your investment. Made from UV coated Oxford fabric they repel dust, water and other debris for easy maintenance.

LT90 All-Season Cover

These Outdoor Fire Covers help to protect your investment. Made from UV coated Oxford fabric they repel dust, water and other debris for easy maintenance.

Gin 90 Low Protective Cover

These Outdoor Fire Covers help to protect your investment. Made from UV coated Oxford fabric they repel dust, water and other debris for easy maintenance.

XL900 Silicone Burner Cover

Silicone Burner Covers protect ethanol burners from the elements when the EcoSmart fire table isn’t in use.

Specifications

Application

Indoor or Outdoor

Dimensions

L 2,272 mm [89.4 in]
W 1,098 mm [43.2 in]
H 345 mm [13.6 in]

Weight

Concrete 171.34 kg [377.7 lb]
Teak 143.44 kg [316.2 lb]

Materials

Fluid™ Concrete or Teak Wood Surround; Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner

Colour

Surround

Natural

Graphite

Bone

Natural Teak

Burner

Stainless Steel

Black

Bioethanol is suited for both Indoor/Outdoor use; however, additional parts are REQUIRED for indoor use.
The weight includes the burner and black glass charcoal.

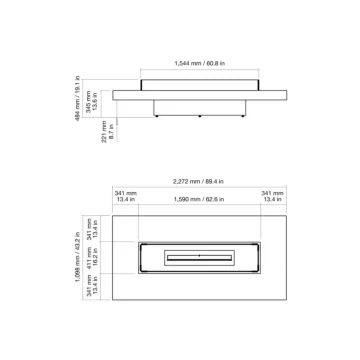

Line drawings show model with the Fire Screen installed.

Efficiency

Burner Information
Burner Configuration Compatible with this model	XL900
Volume Capacity How much fuel	9 L 2.4 gal
Thermal Output How much heat it creates	15,000 BTU/h 15.83 MJ/h - 4 kW
Burn Time How long it lasts	8-13 h 9 L [2.4 gal]
Fuel Consumption How much fuel it consumes on MAX	0.8 L/h 0.21 gal/h
Heats on Average How much space it heats	60 m² 646 ft²
Minimum Room Size Required for this burner	110 m³ 3,885 ft³

These values are indicative ONLY and may vary depending on the model purchased,installation, and the fuel composition.
This model complies with existing standards in the USA, Europe, UK and Australia. O-TL listed to UL 1370, EN 16647 BSI Certified and ACCC Safety Mandate compliant for bioethanol burners.
To comply with EN 16647 the Indoor Safety Tray must be installed before operating indoors. LP/NG burners are UL/ULC listed to ANSI Z21.97-2017 and CSA 2.41-2017, and Gas Appliance Regulation 2016/426 as it applies to EU (CE) and UK (UKCA).

Downloads

Model Specifications

PDF

Clearances & Installation Manual

PDF

Installation & Operation Manual - Ethanol Burners

PDF

Videos

How to assemble and operate your XL Series ethanol burner

The product shown in this video is for demonstration purposes only and may not represent the exact model you are viewing.

How to use the XL Baffles

How to assemble your glass cover plate

The product shown in this video is for demonstration purposes only and may not represent the exact model you are viewing.

How to install the Glass Fire Screen

thumbnail: mad-gin-90-low-fire-table-outdoor.jpg

Durability and peace of mind

Quality materials and toughened glass give peace of mind and make EcoSmart Fire tables the product of choice for many leading architects and designers.

Enhance spaces

Elegant and streamlined, fire tables are a stylish and eye catching feature that create an inviting ambiance and attract family and friends.

Smokeless flame

Experience a captivating flame without the smoke and ash associated with traditional wood fire pits.

Perfect for entertaining

Fire tables bring everyone together and provide space for drinks and plates of food with a mesmerising flame as the centrepiece.

Organic colours

Choose from a natural, blonde teak wood or the sleek, industrial-style concrete colours of natural, graphite or bone.

Long burn time

Fuelled by environmentally friendly e-NRG bioethanol, Gin 90 Low can burn up to 13 hours straight, depending on installation and weather conditions.

Articulating feet

Featuring 360º height-adjustable articulating feet to help you achieve a perfectly level and stable position on your flooring.

Coffee table conversion

An optional glass cover plate allows for easy conversion to a coffee table when the fireplace isn’t in use.

All-weather materials

Our finishes are extremely durable and weatherproof. We use a blend of green cement, recycled materials, and Fluid™ Concrete Technology in our lightweight concrete finish which resists scratches, stains, mould, and mildew. Our wood tables are made from Grade A teak, a naturally durable wood that withstands extreme weather without losing its strength or beauty.

Tested world wide

This model complies with existing standards in the USA, Europe, UK and Australia. O-TL listed to UL 1370, EN 16647 BSI Certified and ACCC Safety Mandate compliant.
