Wharf 65 Fire Pit Table

The simplicity of an outdoor fireplace with the functionality of a table

Wharf 65

The Wharf 65 fire table blends the simplicity of an outdoor fire pit with the functionality of a standalone table to add style and practicality to any architectural environment. Ideal for courtyards, patios, pool decks and terraces, the all-weather, earthy design evokes the atmosphere of an open flame minus the by-products associated with a wood-burning fireplace.

Shop Now

Accessories

Included

XL Baffles

XL Baffles are used to regulate and further stabilise the flame increasing fuel efficiency of the burner.

Jerry Can 5L

The Jerry Can allows for the safe storing/decanting of e-NRG ethanol.

Fire Lighter

This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.

Lighting Rod

The Lighting Rod enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.

Bottle Adaptor

The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.

Black Glass Charcoal

The Black Glass Charcoal is made from high-quality tempered glass and has been designed to withstand harsh weather and temperatures of up to 1300ºF/700ºC.

Optional

L1080 Fire Screen

Screens help to minimise the impact of wind on the flame and reduce fuel consumption.

L50 Cover Plate

Transform the burner section of your Ecosmart fire table, easily turning it into a flat, usable coffee table surface.

LT65 All-Season Cover

These Outdoor Fire Covers help to protect your investment. Made from UV coated Oxford fabric they repel dust, water and other debris for easy maintenance.

Wharf 65 Protective Cover

These Outdoor Fire Covers help to protect your investment. Made from UV coated Oxford fabric they repel dust, water and other debris for easy maintenance.

XL900 Silicone Burner Cover

Silicone Burner Covers protect ethanol burners from the elements when the EcoSmart fire table isn’t in use.

Specifications

Application

Indoor or Outdoor

Dimensions

L 1,650 mm [65 in]
W 1,000 mm [39.4 in]
H 339 mm [13.3 in]

Weight

Concrete 105.06 kg [231.6 lb]
Teak 87.34 kg [192.6 lb]

Materials

Fluid™ Concrete or Teak Wood Surround; Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner

Colour

Surround

Natural

Graphite

Bone

Natural Teak

Burner

Stainless Steel

Black

Bioethanol is suited for both Indoor/Outdoor use; however, additional parts are REQUIRED for indoor use.
The weight includes the burner and black glass charcoal.

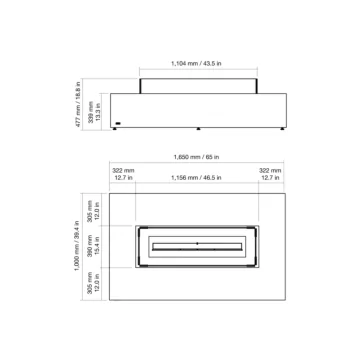

Line drawings show model with the Fire Screen installed.

Efficiency

Burner Information
Burner Configuration Compatible with this model	XL900
Volume Capacity How much fuel	9 L 2.4 gal
Thermal Output How much heat it creates	15,000 BTU/h 15.83 MJ/h - 4 kW
Burn Time How long it lasts	8-13 h 9 L [2.4 gal]
Fuel Consumption How much fuel it consumes on MAX	0.8 L/h 0.21 gal/h
Heats on Average How much space it heats	60 m² 646 ft²
Minimum Room Size Required for this burner	110 m³ 3,885 ft³

These values are indicative ONLY and may vary depending on the model purchased,installation, and the fuel composition.
This model complies with existing standards in the USA, Europe, UK and Australia. O-TL listed to UL 1370, EN 16647 BSI Certified and ACCC Safety Mandate compliant for bioethanol burners.
To comply with EN 16647 the Indoor Safety Tray must be installed before operating indoors. LP/NG burners are UL/ULC listed to ANSI Z21.97-2017 and CSA 2.41-2017, and Gas Appliance Regulation 2016/426 as it applies to EU (CE) and UK (UKCA).

Downloads

Model Specifications

PDF

Clearances & Installation Manual

PDF

Installation & Operation Manual - Ethanol Burners

PDF

Videos

How to assemble and operate your XL Series ethanol burner

The product shown in this video is for demonstration purposes only and may not represent the exact model you are viewing.

How to use the XL Baffles

How to assemble your glass cover plate

The product shown in this video is for demonstration purposes only and may not represent the exact model you are viewing.

How to install the Glass Fire Screen

Talking point

EcoSmart’s flickering flame creates an instant focal – and talking – point for outdoor entertaining spaces.

Smokeless flame

Experience a captivating flame without the smoke and ash associated with traditional wood fire pits.

thumbnail: esf-wharf-65-fire-table-outdoor.jpg

Durability and peace of mind

Quality materials and toughened glass give peace of mind and make EcoSmart Fire tables the product of choice for many leading architects and designers.
