Base 40

Your centre for relaxation and entertainment. Blending a coffee table and fire pit, Base offers the best of both worlds. Whether you're lounging on the patio or hosting an event, Base is sure to impress your guests. Its contemporary classic fire pit fits in seamlessly with any outdoor decor.

Shop Now

Accessories

Included

S500 Fire Screen

Screens help to minimise the impact of wind on the flame and reduce fuel consumption.

Teak

AB8 Efficiency Ring

AB8 Efficient Rings are used to regulate and further stabilise the flame increasing fuel efficiency of the burner.

Ethanol

Jerry Can 5L

The Jerry Can allows for the safe storing/decanting of e-NRG ethanol.

Ethanol

Fire Lighter

This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.

Ethanol

Lighting Rod

The Lighting Rod enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.

Ethanol

Bottle Adaptor

The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.

Ethanol

Black Glass Charcoal

The Black Glass Charcoal is made from high-quality tempered glass and has been designed to withstand harsh weather and temperatures of up to 1300ºF/700ºC.

Optional

S500 Fire Screen

Screens help to minimise the impact of wind on the flame and reduce fuel consumption.

Concrete

S500 Fire Screen

Screens help to minimise the impact of wind on the flame and reduce fuel consumption.

R400 Fire Screen

Screens help to minimise the impact of wind on the flame and reduce fuel consumption.

Concrete

R400 Fire Screen

Screens help to minimise the impact of wind on the flame and reduce fuel consumption.

S22 Cover Plate

Transform the burner section of your Ecosmart fire table, easily turning it into a flat, usable coffee table surface.

Base 40 Winter Bag

These Outdoor Fire Covers help to protect your investment. Made from UV coated Oxford fabric they repel dust, water and other debris for easy maintenance.

ST40 All-Season Cover

These Outdoor Fire Covers help to protect your investment. Made from UV coated Oxford fabric they repel dust, water and other debris for easy maintenance.

Base 40 Protective Cover

These Outdoor Fire Covers help to protect your investment. Made from UV coated Oxford fabric they repel dust, water and other debris for easy maintenance.

AB8 Silicone Burner Cover

Silicone Burner Covers protect ethanol burners from the elements when the EcoSmart model isn’t in use.

Specifications

Application

Indoor or Outdoor

Dimensions

L 1,000 mm [39.4 in]
W 1,000 mm [39.4 in]
H 339 mm [13.3 in]

Weight

Concrete 67.74 kg [149.3 lb]
Teak 54.9 kg [121 lb]

Materials

Fluid™ Concrete or Teak Wood Surround; Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner

Colour

Surround

Natural

Graphite

Bone

Natural Teak

Burner

Stainless Steel

Black

Bioethanol is suited for both Indoor/Outdoor use; however, additional parts are REQUIRED for indoor use.
The weight includes the burner and black glass charcoal.

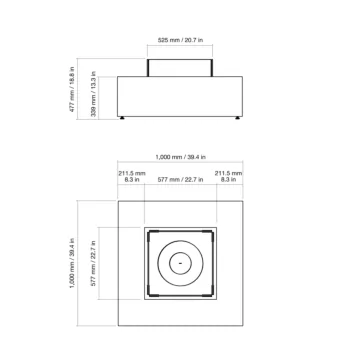

Line drawings show model with the Fire Screen installed.

Efficiency

Burner Information	Bioethanol	Liquid Propane	Natural Gas
Burner Configuration Compatible with this model	AB8	G16T	G16T
Volume Capacity How much fuel	8 L 2.1 gal	N/A	N/A
Thermal Output How much heat it creates	20,433 BTU/h 21.56 MJ/h - 6 kW	65,000 BTU/h 68.58 MJ/h - 19 kW	65,000 BTU/h 68.58 MJ/h - 19 kW
Burn Time How long it lasts	7-9 h 8 L [2.1 gal]	8-20 h Tank	Unlimited
Fuel Consumption How much fuel it consumes on MAX	1.1 L/h 0.29 gal/h	N/A	N/A
Heats on Average How much space it heats	60 m² 646 ft²	Outdoor Only	Outdoor Only
Minimum Room Size Required for this burner	116 m³ 4,097 ft³	Outdoor Only	Outdoor Only

These values are indicative ONLY and may vary depending on the model purchased,installation, and the fuel composition.
This model complies with existing standards in the USA, Europe, UK and Australia. O-TL listed to UL 1370, EN 16647 BSI Certified and ACCC Safety Mandate compliant for bioethanol burners.
To comply with EN 16647 the Indoor Safety Tray & included AB8 Burner Efficiency Ring must be installed before operating indoors.
